Equally important accessories inside the sensor help it operate more smoothly .
Connect all accessories to ensure the sensor operates accurately, giving the most accurate results .
1.Sensor Body
The body of the sensor has the component name engraved
Installed with cover glass and oring to always ensure absolute water resistance when the sensor is operating
2. Battery cover
An indispensable accessory among the sensor accessories is the battery cover
Helps keep the battery fixed in the correct polarity
3. SAFT sensor battery
The battery is the necessary energy source to provide the sensor with continuous and durable operation
Always use genuine, high-quality batteries to ensure stable operation for the sensor
4. Glass Cover
The glass cover helps to see inside the sensor when the indicator light on the PCB board
At the same time, it helps to detect immediately when the sensor has an error, the display light on the body
The glass cover with the oring on the top and bottom helps the sensor to ensure that it is not soaked in water
5. Oring
The oring are installed with accessories to help the sensor be 100% sealed
Resisting the penetration of external agents such as water, oil, dust...
6. Sensor PCB assembly
The sensor's main PCB receives information from the strain gauge board
At the same time, the main PCB also connects the sensor to the OMMI of the processing machine to provide information and measurement values
7. Force sensor circuit
The most important sensor circuit cluster among the internal accessories of OMP400
New imported components, tested before leaving the factory
The circuit cluster measures the deformation force when measuring the object of the sensor, then transmits the signal to the sensor
8. Braket-Tripod-Pogo Pin
Equally important accessories inside the sensor help it operate more smoothly .
Connect all accessories to make the sensor operate accurately, giving the most accurate results

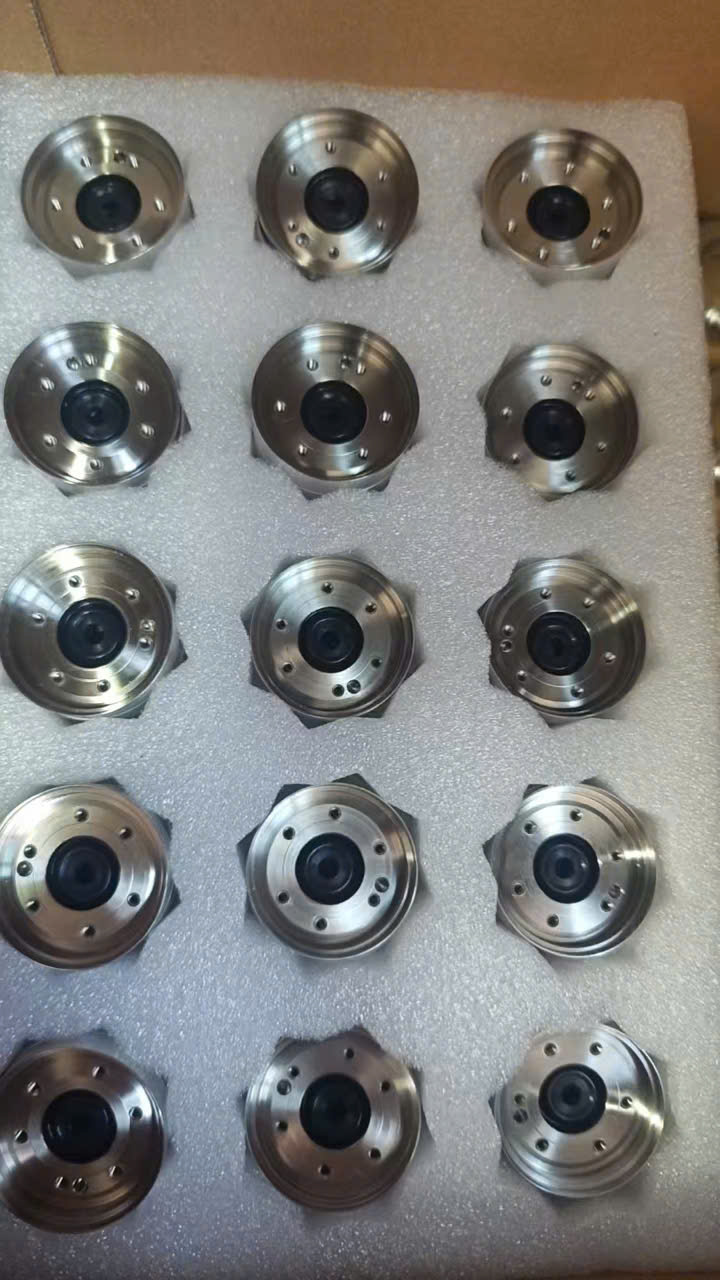

9. Base Housing
Base includes series of components
Pressed with 100% waterproof oring when installed with cover glass and housing
