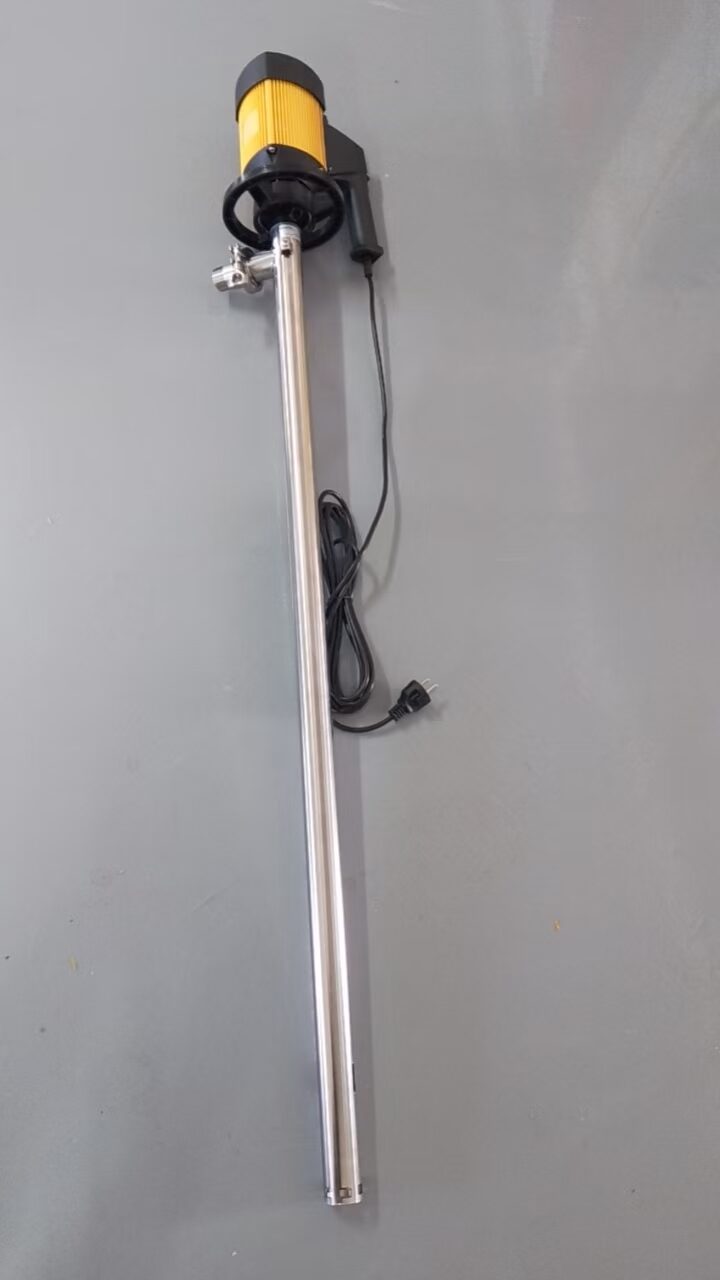

The TB series is designed and developed for the transfer of liquids from small bore vessels, with a modular construction and an unglazed seal and leak-free design to reduce future maintenance costs.
The 42 mm pipe diameter is suitable for low viscosity media in 25 kg drums, such as solvents, bleaching liquids, hydrochloric acid, nitric acid, sulphuric acid and other media.
Technical data:
Max. Flow rate: 120l/min (electric motor), 58 l/min (air motor)
Max. head: 10 m (electric motor), 5m (air motor)
Max. temperature: 66 ℃
Viscosity: 800 cps
Max. gravity: 1.8

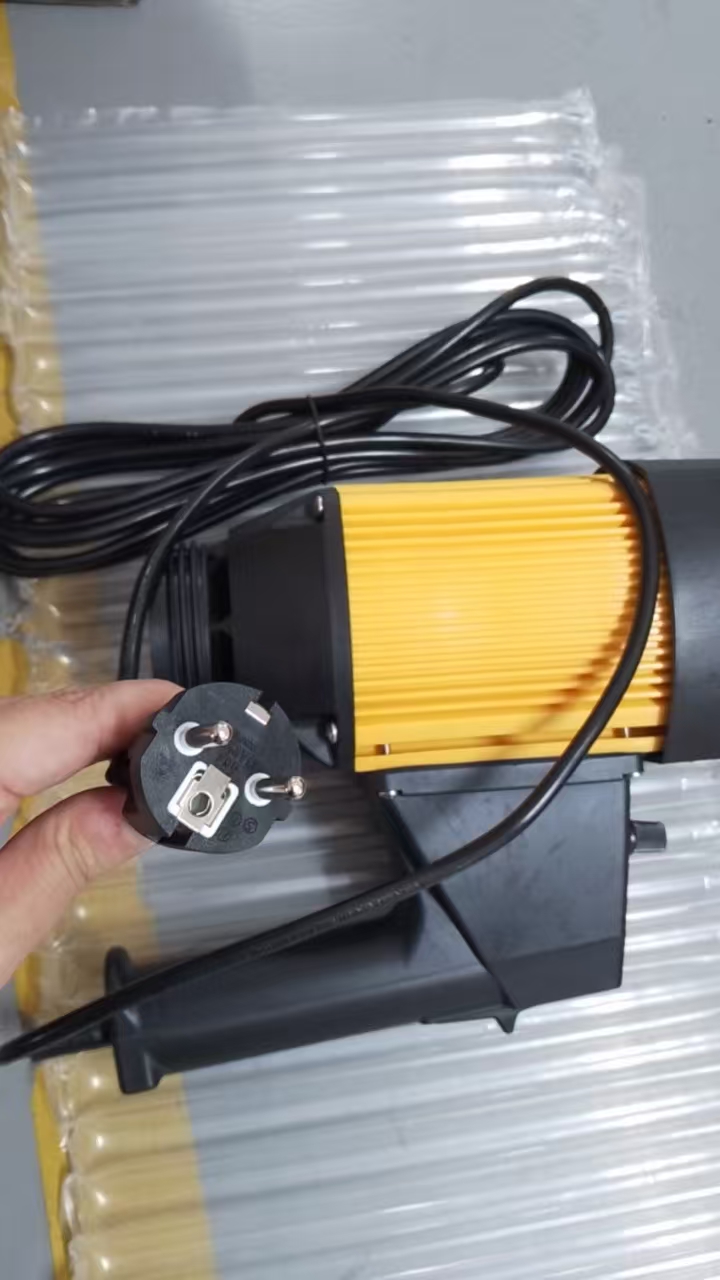

Drive: Electric motor or air motor as option.
Immersion length: 700mm, 1000mm, 1200mm, Non-standard custom
A complete drum pump control system could be offered, include flow meter, hose, dosing dispenser and check valve, etc.
1. Quick clamp
2. Teflon gasket
3. Threaded quick connector
4. Hose quick connector
5. Hose clamp
6. Hose
7. Threaded hose connector
8. Reducer union
9. Quick combination connector
10. Flowmeter
11. Hose with live joint
12. Pump fixator
13. Equipotential ground wire
14. Strainer
15. Wall mounting
16. Air filter
17. Dosing gun
18. Adaptor joints
19. Drain pipe
